Pressure Limiting Valve with 3/4" or 1" male NPT threads. This valve should be used in all whole-house Water Filter installations where the water pressure can reach over 90 psi or water hammer can be present.
This valve will provide up to 52 litres per minute flow, and is recommended to stop excessive pressures and water hammer from damaging water filters, fittings, faucets and water heating equipment.

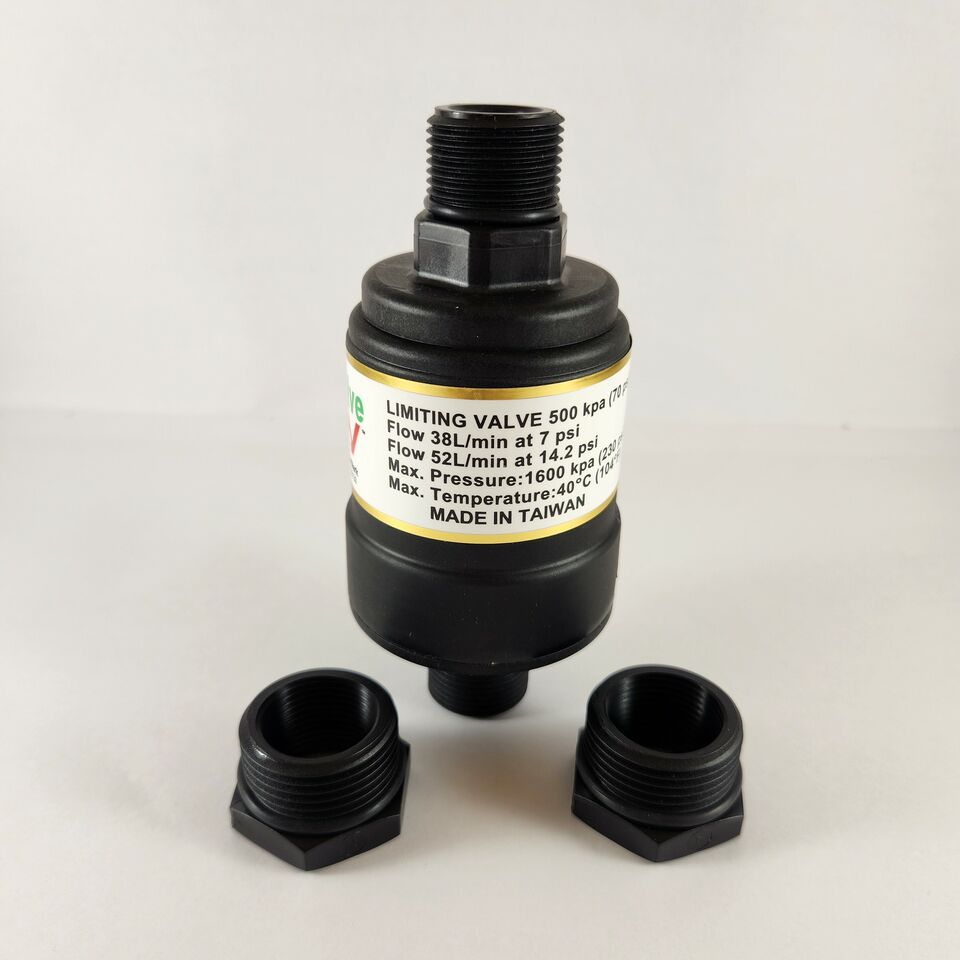

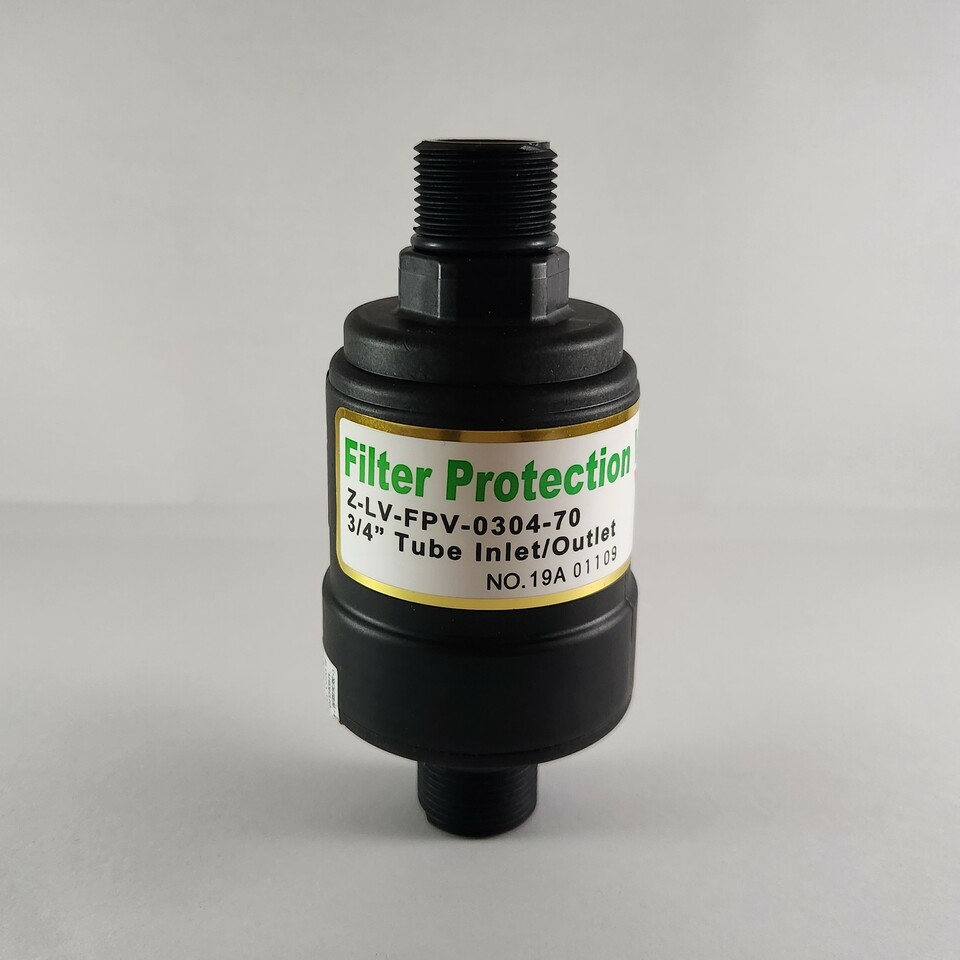

500kPA 70psi 3/4" or 1" male NPT, Pressure Limiting Filter Protection Valve
WaterMark Approved AS/NZS 4020
In-Out Size: 3/4" NPT
Flow Rate: 38L/min at 7psi
Flow Rate: 52L/min at 14.2psi
Max Inlet Pressure: 1600kPa (230psi)
Max. Temperature: 40'C (104℉)
Length: 140mm
Width: 70mm
Weight: 250 grams
