Water Filter Housings

Alpine Pure filter housing for Full Flow (Big Blue/Jumbo) filter cartridges; Made from food grade materials. Heavy Duty 20" Big Blue with 1" Ports. Max 90psi. These 20" jumbo housings are the largest domestic sized housings and commonly used for whole house systems as a single housing or a twin unit when joined together with 1" nipple and a twin bracket. Suitable for all 20" X 4 1/2" filter cartridges. Complete package including SS bracket, SS screws and spanner. Please note this filter housing does not include a cartridge.

Alpine Pure filter housing for 20 inch Full-Flow Big Blue/Jumbo filter cartridges; Made from Food grade materials. Heavy Duty 20" Clear Jumbo with 1" (25mm) ports. Max 100psi. These 20" jumbo housings are used for whole house systems as a single unit or as a twin housing when joined together with 1" nipples and a twin SS bracket. Suitable for all 20" X 4 1/2" filter cartridges. Complete as shown with bracket, Screws, and Spanner. These clear housings are not recommended to be situated in any sunlight as green Algae will grow inside the housing. Please note this filter does not include a filter cartridge.

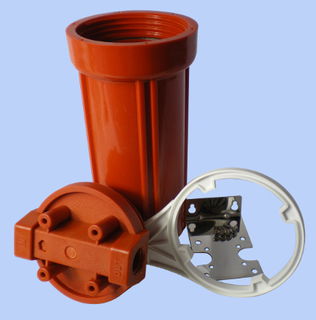

Alpine Pure High Temperature Filter Housing constructed of glass-reinforced nylon. Excellent chemical compatibility makes High Temperature housings an ideal choice for a wide variety of industrial applications.

These 10" Std housings can be used to filter liquids up to 70°c and can be used as a single unit or as a twin housing when joined together with ¾" nipples.

All our 10”x 2½” Std filter cartridges will fit this High Temperature housing but not all the cartridges are suitable for hot liquids. Please inquire which cartridge would be suitable for your application.

Heavy Duty 10" High Temperature Std with ¾" (20mm) ports.
Max Pressure: 90 psi
Max Temperature: 70°c

Package includes SS Bracket, SS Screws, and Spanner.

Alpine Pure filter housing for Full-Flow (Big Blue/Jumbo filter cartridges) Manufactured with food grade materials. Heavy Duty 20" Big Blue with 3/4" (20mm) Ports. Max 90psi. These 20" jumbo housings are the largest domestic sized housings and commonly used for whole house systems as a single unit or a twin unit when joined together with 3/4" nipple and a twin bracket. Suitable for all 20" X 4 1/2" filter cartridges. Package includes SS Bracket, SS Screws, and Spanner. Please note this filter housing does not include a cartridge.

Alpine Pure Clear filter housing for 10 inch Full-Flow Big Blue/Jumbo filter cartridges; Made from Food Grade materials. Heavy Duty 10" Jumbo with 1" (25mm) ports. Max 90 psi. These 10" jumbo housings are used for whole house systems as a single unit or a twin unit when joined together with 1" nipples and a twin SS bracket. Suitable for all 10" X 4 1/2" filter cartridges. Complete as shown with SS bracket, SS Screws, and Spanner. Please note if this clear housing is situated in sunlight it will grow green algae inside it. Please also note this filter housing does not include any filter cartridge.

Alpine Pure filter housing for 10 inch Full-Flow Big Blue/Jumbo filter cartridges; Made from Food grade materials. Heavy Duty 10" BIG Blue with 1" (25mm) ports. Max 90 psi. These 10" jumbo housings are used for whole house systems as a single unit or when joined together with 1" nipples and a twin SS bracket. Suitable for all 10" X 4 1/2" filter cartridges. Complete as shown with SS bracket, SS Screws and Spanner. Please note this filter does not include any filter cartridge.

Alpine Pure filter housing for 10 inch Full-Flow Big Blue/Jumbo filter cartridges; Made from Food grade materials. Heavy Duty 10" BIG Blue with 3/4" (20mm) ports. Max 90 psi. These 10" jumbo housings are used for whole house systems as a single unit or when joined together with 3/4" nipples and a twin SS bracket. Suitable for all 10" X 4 1/2" filter cartridges. Complete as shown with a SS bracket, SS Screws, and Spanner. Please note this filter does not include any filter cartridge.

Alpine Pure filter housing. Made from NSF and FDA grade materials. 1/2 inch ports. Max 125psi. Suitable for any inline application like Boat, Camper, or where a filter housing is needed to filter all the cold water supply to a sink or when no seperate water filter tap is wanted. Fits all 10" X 2 1/2" STD filter cartridges. Package includes a SS Bracket,SS screws and spanner. Please note this filter does not include any cartridge.

10mm female Ports. 5" STD clear housing. Max 125psi.
A great cost efective housing when the available space is tight. Common in boats, camper vans, caravans.
Suitable for an under bench filter system or a benchtop water filter housing. Suits 5" X 2 1/2" Carbon Block PB1 0.5 micron or CTO 5 micron cartridges. (see carbon block filters) This housing includes a bracket, SS screws and spanner. This filter housings can be joined with a 1/4 nipple, twin std size bracket and made into a twin underbench easily. Please note this filter does not include a cartridge.

5" STD inline Clear housing with 20mm ports. Max 125psi.
A great cost effective housing when the available space is tight.
Suitable for inline boat, camper van, or available with hose fittings to clip onto an exterior tap to filter the water before going into a tank. Suits 5" X 2 1/2" Carbon Block PB1 0.5 micron or a CTO 5 micron cartridge. (see carbon block filters) Please note this filter does not include any cartridge.

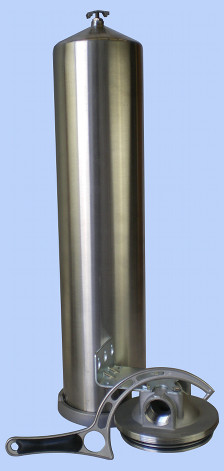

Heavy Duty 304 Stainless Steel Water Filter Housing and cast Stainless Steel Head with 25mm (1 inch) ports.

EPT o-ring.
Max pressure 300psi
Max temp 93°c

Maximum strength and durability, ideal for use with hot water and high pressure applications not suitable for plastic housings.

Accepts a complete range of Big 10 inch cartridges including Wound, Melt Blown, Pleated, Carbon, Stainless Steel and others.

Not all cartridges are suitable for hot liquids. Please inquire which cartridge would be suitable for your application.

Flow capacities are determined by the type of cartridge utilized and process conditions.

Suitable for:
Food and Beverage
Chemical Processing
Heating/Cooling Systems
RO Prefiltration
Water Purification Systems
High Temperature Fluids

Comes complete with wall mounting bracket and ring nut spanner for easy filter cartridge change.

Also available in the smaller 10" Std and the larger 20" Big size for greater flow

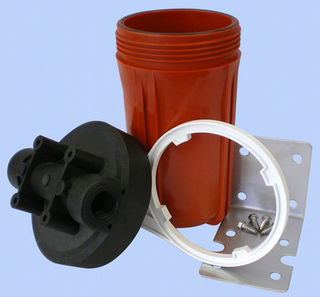

Alpine Pure High Temperature Filter Housing constructed of glass-reinforced nylon. Excellent chemical compatibility makes High Temperature housings an ideal choice for a wide variety of industrial applications.

These 10" Big/Jumbo housings can be used to filter liquids up to 70°c and can be used as a single unit or as a twin housing when joined together with 1" nipples.

All our 10”x 4¼” Big/Jumbo filter cartridges will fit this High Temperature housing but not all the cartridges are suitable for hot liquids. Please inquire which cartridge would be suitable for your application.

Heavy Duty 10" High Temperature Big/Jumbo with 1" (25mm) ports.
Max Pressure: 90 psi
Max Temperature: 70°c

Package includes SS Bracket, SS Screws, and Spanner.

Alpine Pure filter housing with 3/4" or 20mm ports for a Full-Flow standard size filter. Made from Food grade materials. Max 125 psi. These 10" Std size housings are used for a small whole house system as a single unit or when two housings are joined together with 3/4" nipples and a twin bracket. Suitable for all 10" X 2 1/2" filter cartridges. Complete as shown with SS bracket, SS Screws, and Spanner. This filter is the correct size to connect to any exterior tap for filtering water to a garden hose or water tanks while camping, boating ETC. We recommend using the 0.5 micron CR1, PB1 for tank drinking water or the CTO 5 micron for Chlorine removal only. As a sediment filter go to the 10 inch x 2 1/2 inch Gradient Density Polyspun filters for a range of micron sizes. Please note this filter does not include any filter cartridge.

Heavy Duty 304 Stainless Steel Water Filter Housing and cast Stainless Steel Head with 25mm (1 inch) ports.

EPT o-ring.
Max pressure 300psi
Max temp 93°c

Maximum strength and durability, ideal for use with hot water and high pressure applications not suitable for plastic housings.

Accepts a complete range of Std 10 inch cartridges including Wound, Melt Blown, Pleated, Carbon, Stainless Steel and others.

Not all cartridges are suitable for hot liquids. Please inquire which cartridge would be suitable for your application.

Flow capacities are determined by the type of cartridge utilized and process conditions.

Suitable for:
Food and Beverage
Chemical Processing
Heating/Cooling Systems
RO Prefiltration
Water Purification Systems
High Temperature Fluids

Comes complete with wall mounting bracket and ring nut spanner for easy filter cartridge change.

Also available in 10" and 20" Big size for greater flow.

Alpine Pure High Temperature Filter Housing constructed of glass-reinforced nylon. Excellent chemical compatibility makes High Temperature housings an ideal choice for a wide variety of industrial applications.

These 20" Big/Jumbo housings can be used to filter liquids up to 70°c and can be used as a single unit or as a twin housing when joined together with 1" nipples.

All our 20”x 4¼” Big/Jumbo filter cartridges will fit this High Temperature housing but not all the cartridges are suitable for hot liquids. Please inquire which cartridge would be suitable for your application.

Heavy Duty 20" High Temperature Big/Jumbo with 1" (25mm) ports.
Max Pressure: 90 psi
Max Temperature: 70°c

Package includes SS Bracket, SS Screws, and Spanner.

Alpine Pure filter housing. Made from NSF and FDA grade materials. 1/2 inch ports. Max 125psi. Suitable for any inline application like Boat, Camper, or where a filter housing is needed to filter all the cold water supply to a sink or when no seperate water filter tap is wanted. Fits all 10" X 2 1/2" Std size filter cartridges. Package includes a SS Bracket,SS screws and spanner. These clear housings are not suitable for installing in sunlight as Algae will grow inside the housing. Please note this filter does not include any cartridge.

Alpine Pure filter clear housing Made from NSF and FDA grade materials. Flat Cap. Suitable for benchtop filter or an under bench instalation. Max 125psi. These can be joined together with a 1/4" nipple and twin bracket to create a "twin" under bench unit. Suitable for all 10" X 2 1/2" Std size cartridges. Package includes a bracket, SS screws and a spanner. Installing this filter in sunlight is not recommended as Algae will grow inside the housing. Please note this filter does not include any cartridge

These NSF Approved Alpine Pure System Housings are for those of you that want the best water flow and maximum dirt/chlorine/heavy metals holding capacity available. Manufactured with 1" BSP ports. Package includes 2 X 20" BIG Blue housings, Twin Stainless Steel bracket with SS screws, spanner and a 25mm housing joiner. Suitable for all our 20" X 4 1/4" filter cartridges. No Cartridges included in this package deal.

In a rural situation for sediment control we recommend a 50-20 micron Gradient Density followed by a 20-1 micron final cartridge. If Taste or Odor is an issue then the 20-1 micron Gradient Density goes first followed by a Carbon Block 5 or 10 micron depending on your budget.

For Chlorinated town water a 20-1 micron Gradient Density always goes first followed by the 0.5 micron carbon block PB1 for the Ultimate protection or the 5 micron CTO for Chlorine, Taste and Odor removal.
